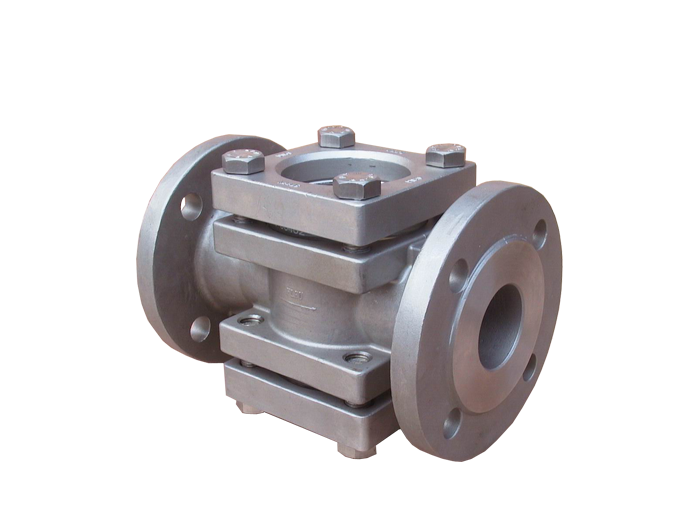

ANSI Sight Glass Fig.510

Nominal size:: 1/2" to 8"

Pressure range:: 150LB to 300LB

Temperature range:: From -29℃ to +280℃/CS From -50℃ to +280℃/SS

Materials of body:: WCB,CF8M,CF8,CF3,CF3M, LCB

End connections:: Flanges acc.to ASME B16.5

Accessory:: Glass acc. : DIN 7080 / Metal Glas

Specifications
Datasheets
Operating manuals
Application

Certificates and approvals:
Basic design: DIN 3237
Test: API 598
Face to face: DIN EN558-1, G1

ANSI WCB CF8M Flange Sight glasses Fig.510 150lbs 300lbs 0.5~8inch.pdf

Operating manuals-Sight glass.pdf

Chemical
Petrochemical
Pharmacy
Oil & Gas
Water treatment
