Suzhou Fleu Valve Co., Ltd

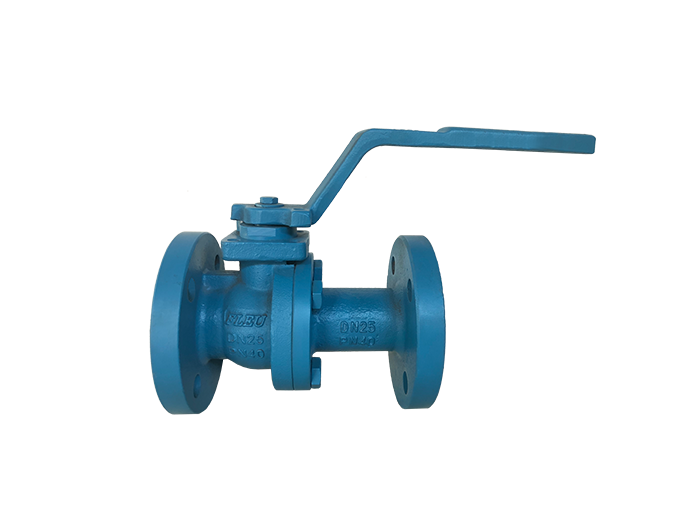

DIN Ball Valve Fig.754

Nominal size:: DN15 to DN200

Pressure range:: PN10 to PN40

Temperature range:: From -29℃ to +260℃/CS From -50℃ to +260℃/SS

Materials of body:: 1.0619,1.4408,1.6220,1.4581 1.7357,1.7379,1.4308,1.4470

End connections:: Flanges acc.to EN 1092-1

Accessory:

Specifications
Datasheets
Operating manuals
Application

Certificates and approvals: TA-Luft VDI2440, ISO 15848-1, API607
Basic design: DIN 3357
Test：DIN EN12266-1
Fire safe:API607
Face to face: EN558-1 , G27 / G28
Operated Way: Handlever,Bevel Gear,Pneumatic,Electric

DIN 754 spring washer floating ball valves 1.4408 1.0619N PN16,40 DN15-DN200.pdf

Operating manuals-Ball valve.pdf

Chemical
Petrochemical
Pharmacy
Oil & Gas
Water treatment
LNG
Hydrogen energy
